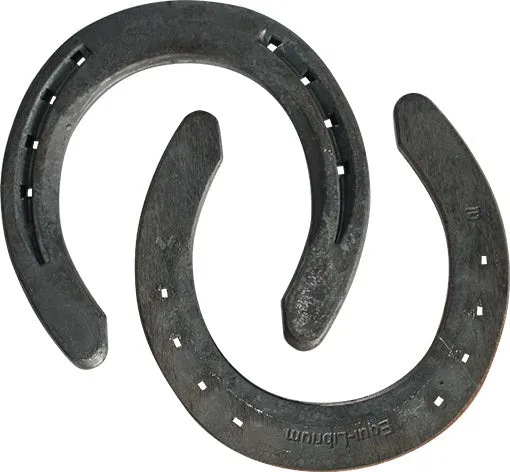

MUSTAD EQUI-LIBRIUM

The design of the Equi-Librium horseshoe is the end result from an extensive scientific research project at the Utrecht University in the Netherlands.

MAXIMUM FLEXIBILITY

wide variety of sizes and sections

easier shoe adaptations

INNOVATIVE FEATURES

following the anatomical foot shape

definite left and right shapes

Section-To-Size dimensions change according to shoe size

upright heels

all edges are broken or boxed

RECOMMENDED NAILS

Mustad LiBero ARCTM Mustad ConcaveTM Mustad ESL

BALANCE IN MOTION

Welfare and athletic performance of the horse took centre stage and special designed balance and breakover are key features of this shoe. The shoe is now also tested in practice and we´re proud to say that many top sport horses achieve their successes on these shoes. Overall Equi-Librium is a sport shoe for performance horses and all horses that have to make fast turns in their work. The proven beneficial effects of this shoe can also aid horses suffering from an overload injury of the distal limb in their rehabilitation process.

MODEL

Although the design of the Equi-Librium appears symmetrical some anatomical adaptations are made resulting in a definite left and right shape. The outside branch is slightly longer with the nail holes punched a fraction coarser for optimum fitting and nailing on.

The extra wide toe area is forged with a 2 dimensional convex curve allowing the horse to fluently breakover in any direction required. Special care was taken to ensure that the centre of mass of the shoe matches the Centre of Pressure CoP during mid-stance of the hose thereby creating the perfectly balanced hoof.
The inside edge on the ground surface has a balanced concave section in order to reduce weight. This also assists in reducing the build up of mud around the shoe. Both the concave section and the crease do not run through the heels in order to improve support during landing and to provide a perfect base for stud holes. Having heels also gives the farrier the option of forging a variety of innovative alternatives in the heel area of the shoe.

ADDITIONAL FEATURES

All dimensions and section have been optimized for each shoe size giving an optimal shoe fit and a limited shoe range. Broken edges sole relief and flush clips are standard features on all shoes. Unclipped models of this shoe are available.

The V-crease and nail holes provide a perfect fit with the specified Mustad nails which reduce the risk of shoe loss.
