Description

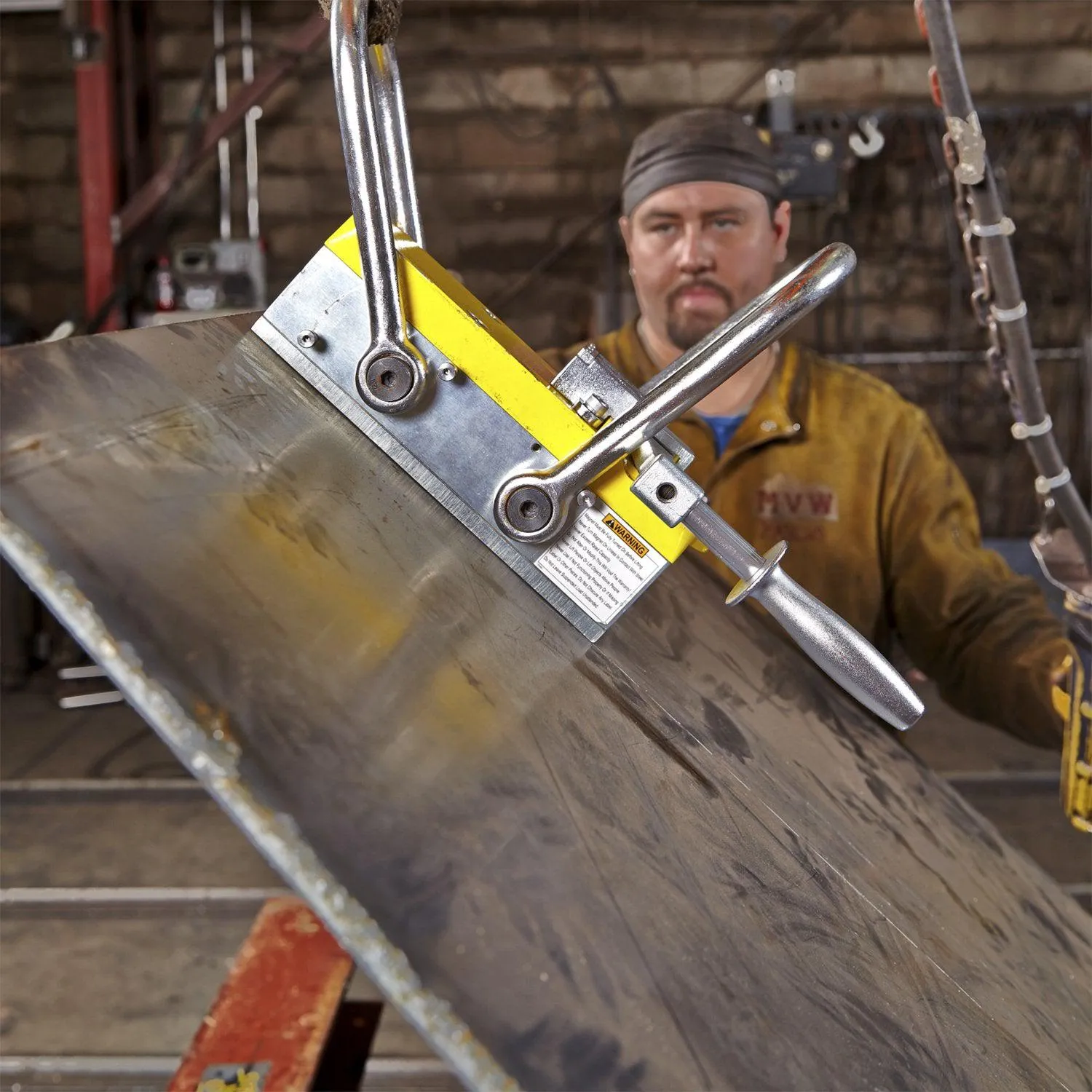

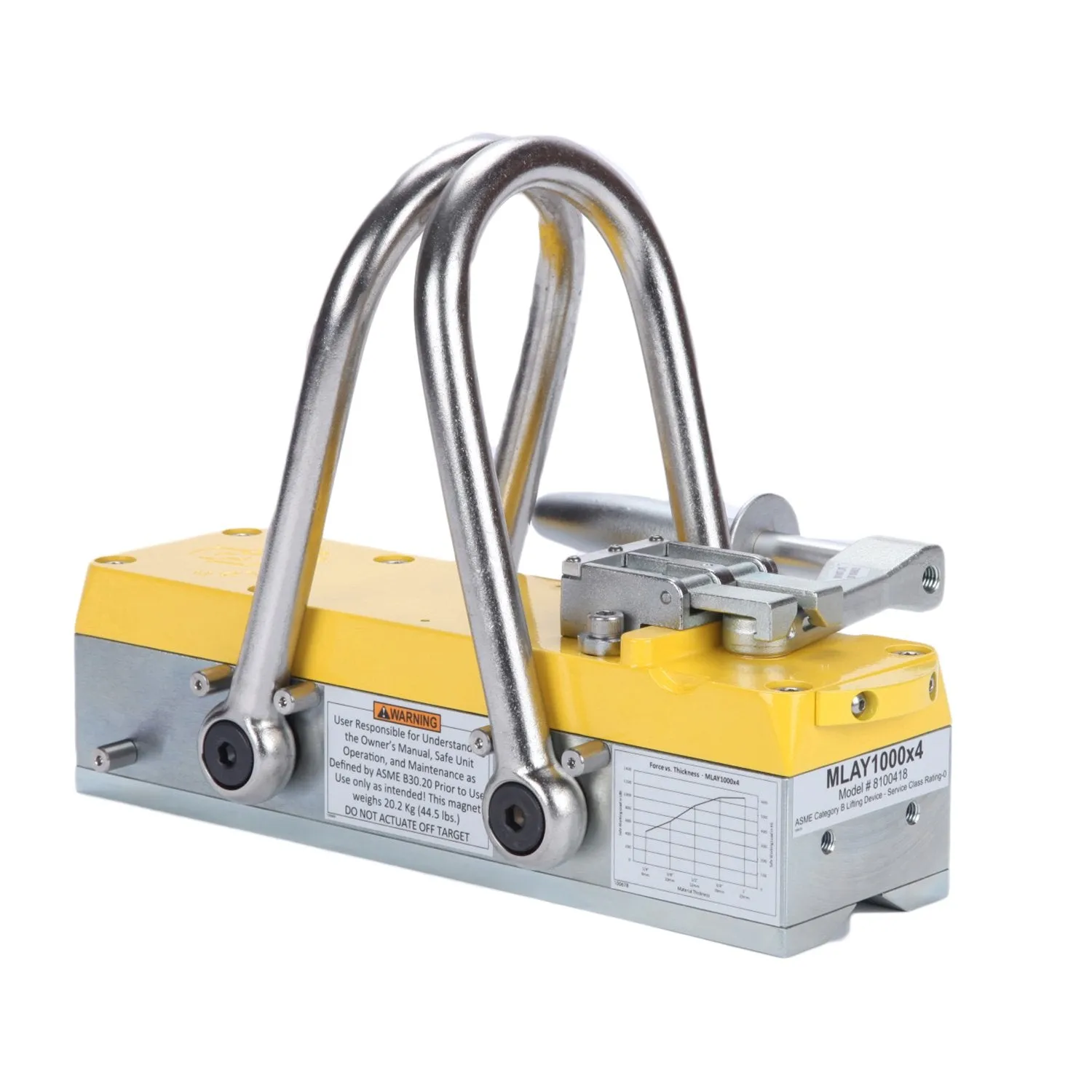

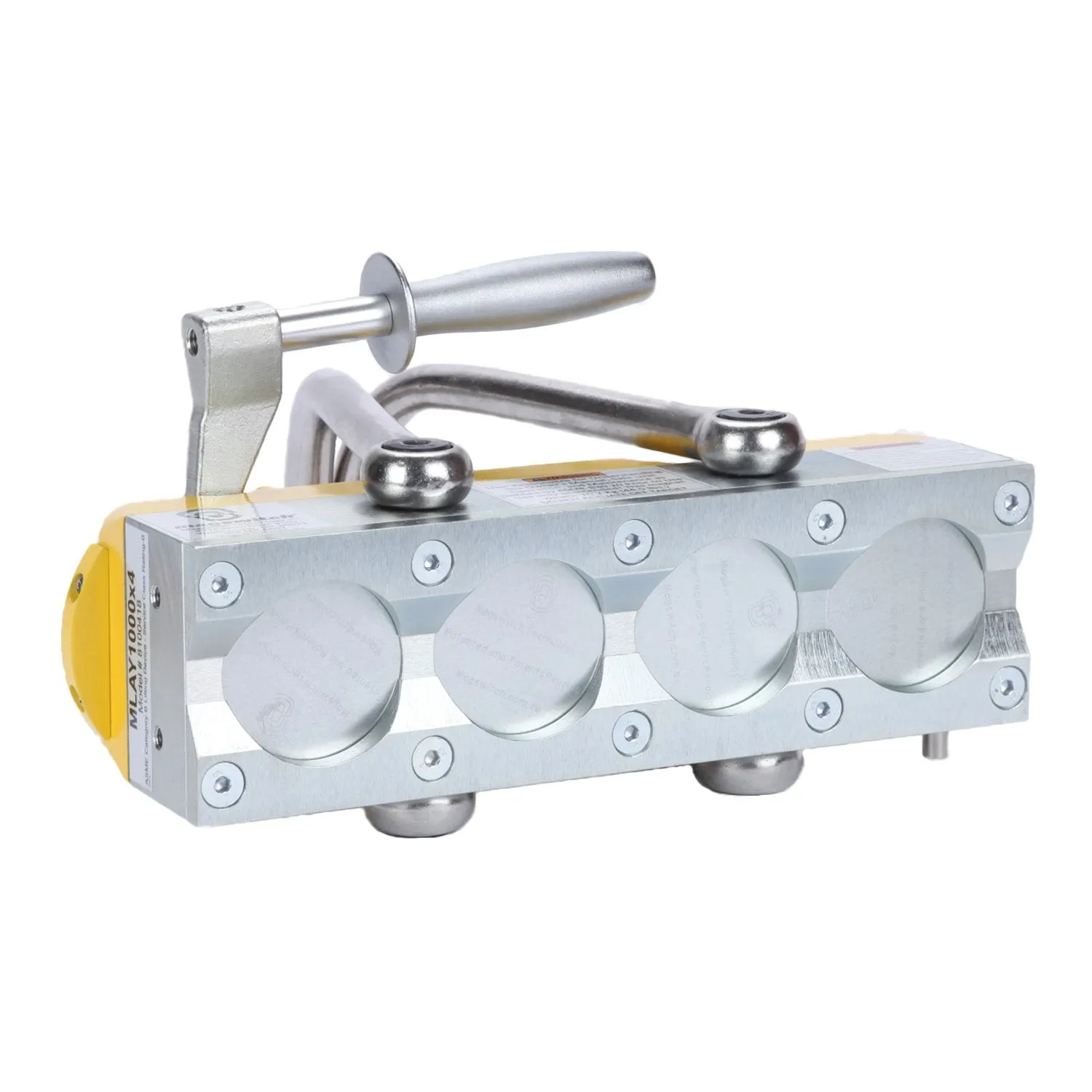

The Magswitch MLAY1000x4 lifting magnet is built for heavy-duty lifting, our magnet technology is powerful without the need for a power source. Safely lock in both the On and Off position with a magnetic holding force of 3640 pounds. The dual lift hook offers the stability to lift horizontally and a single hook to lift into a vertical position.
Superior hold force on Thin steel (70mm deep field).- Compact, light weight and easy actuation.
- Pivoting Hook allows lift from horizontal to vertical.
- Pole Shoes – replaceable for long life, or make custom shoes match to target.
- Lock on/ off handle.
- Lifts Flat or Pipe.
- Superior performance in the presence of air gaps such as rust, paint and uneven surfaces.
- Better performance on thin steel allows Magswitch to fit the job with a lighter magnet and usually at a better price.
*Special order item non cancellable or able to be returned
Specifications
- Max Breakaway: 3640 lbs/1654 kg
- Safe Working Load: 1213 lbs/551 kg
- Full Saturation Thickness: 3/4” / 19.05mm
- Max Safe Shear: 283 lbs/128.6 kg
- Minimum Thickness for De-Stack: 3/4” / 19.05mm
- Net Weight: 45.2 lbs/20.5 kg
- Mounting Thread: M8x1.25
- Overall Height: 250.79 mm
- Magnetic Pole Footprint: 336mm x 97.6mm
