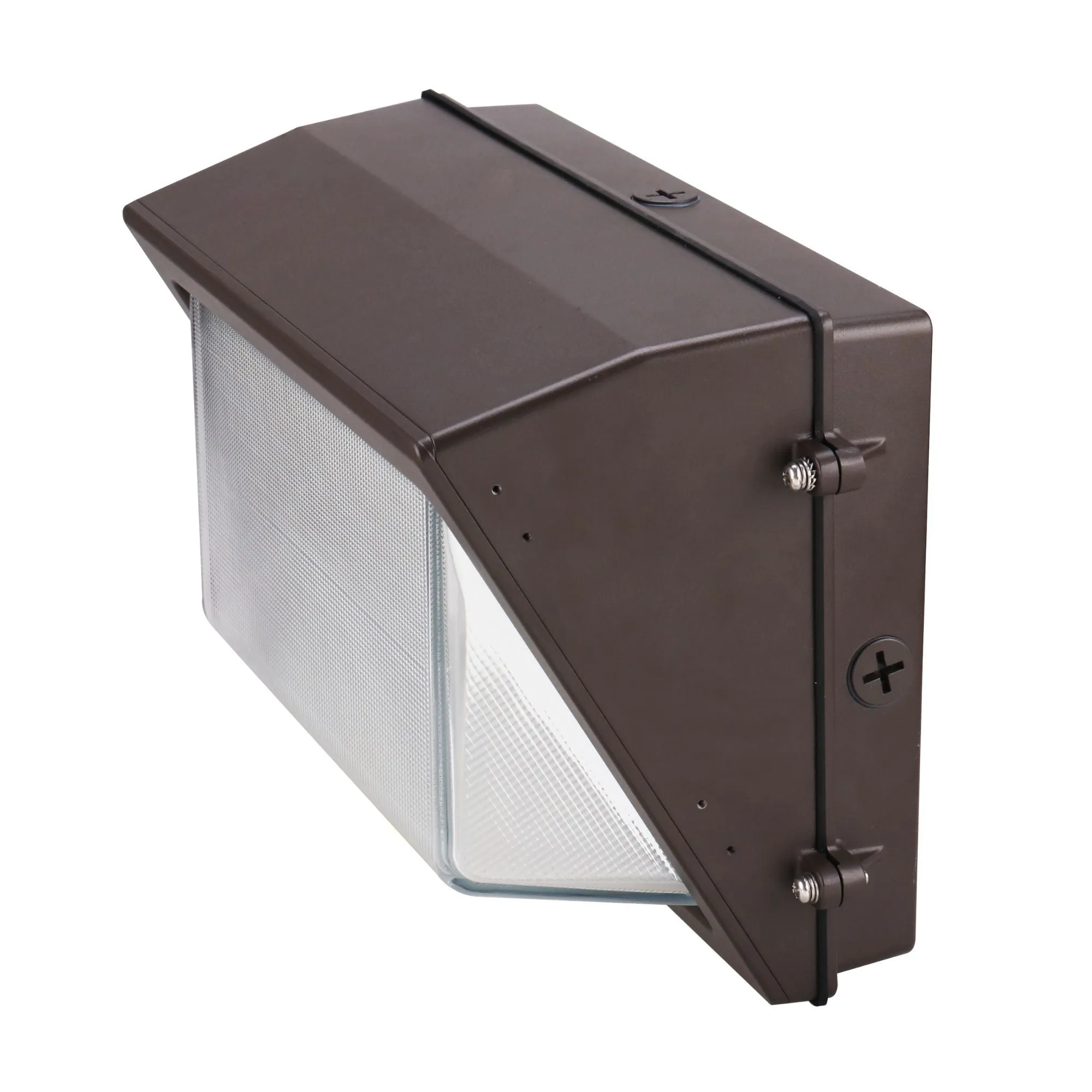

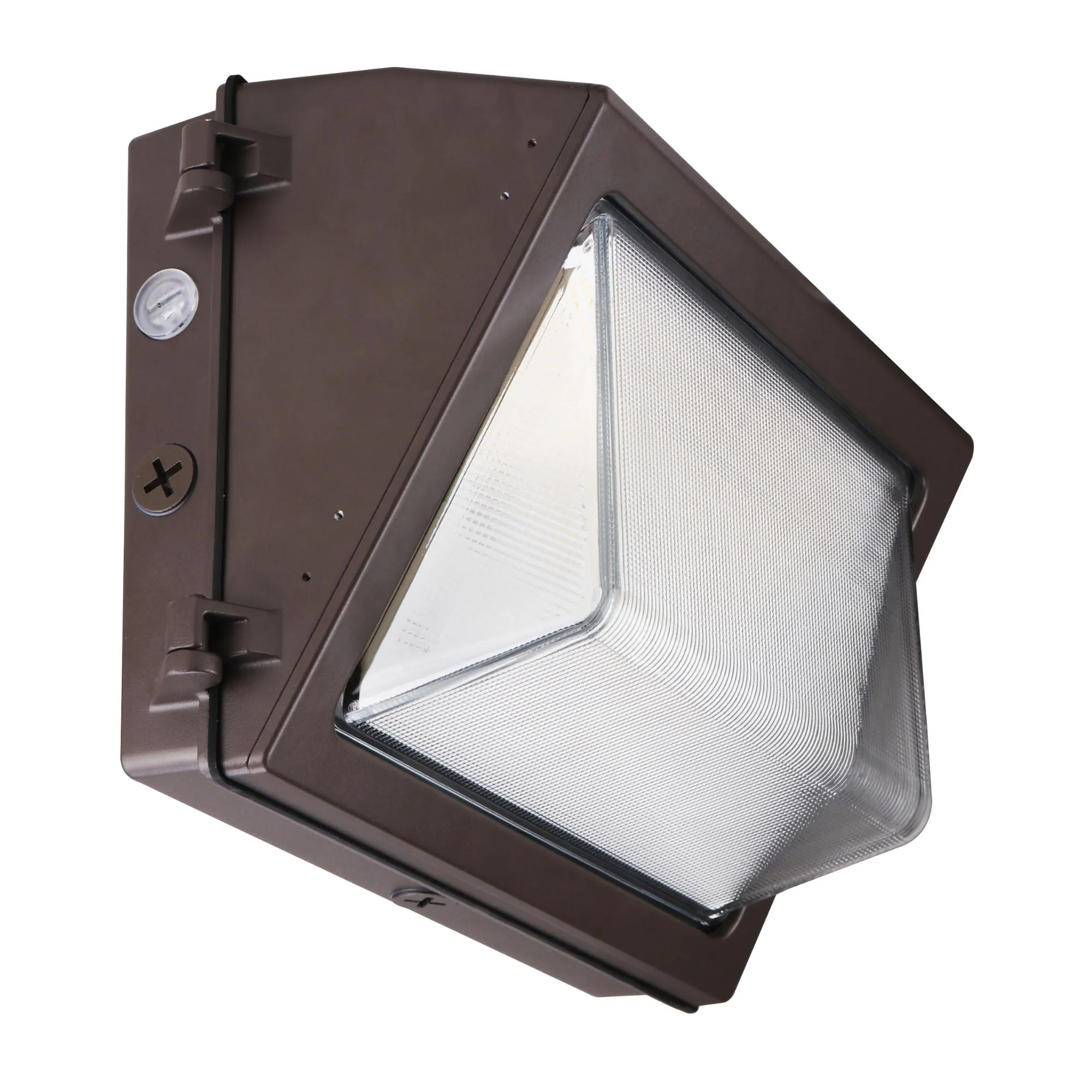

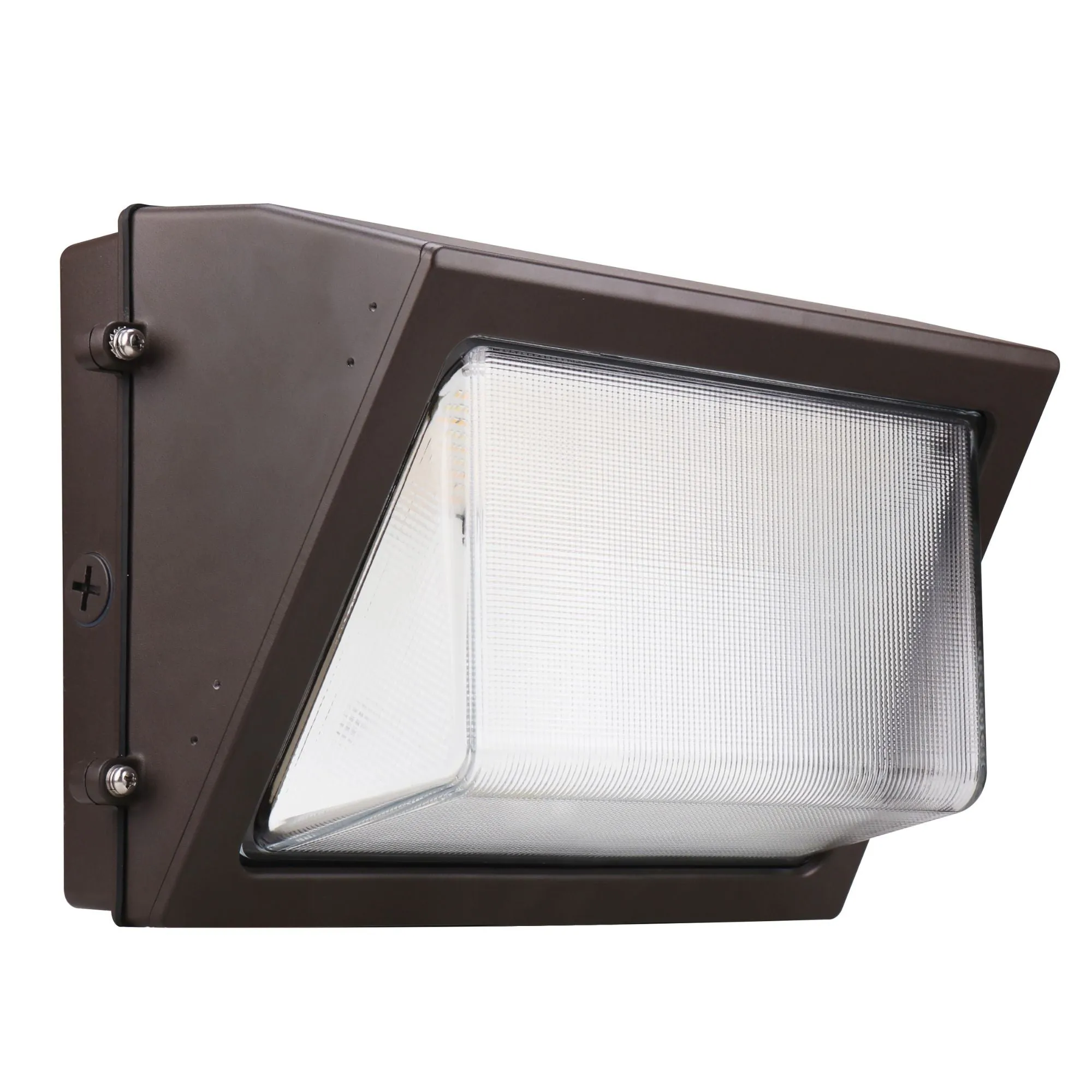

This LED Wall Pack Light 40W delivers 142LM/W bright and energy-efficient lighting that replaces 250W equivalent HPS or HID fixtures. Our wall pack lights are UL DLC 5.1 qualified, ensuring top-notch quality.
The fixture comes with a built-in photocell sensor that automatically adjusts its illumination based on ambient light levels saving up to 80% energy cost. The Stripe Glass diffuser enhances light distribution, minimizing glare and providing a pleasant lighting experience. The heavy-duty die-cast aluminum body ensures IP 65 rating that can work in all outdoor environments. Our SWP5 Wall Pack Lighting lasts over 50,000 hours and has a 5-year warranty.
*This light fixture only comes with the photocell accessory. Any other accessories displayed in the video (motion sensors, emergency ballasts, shields, or cages) could be special ordered by calling our office*

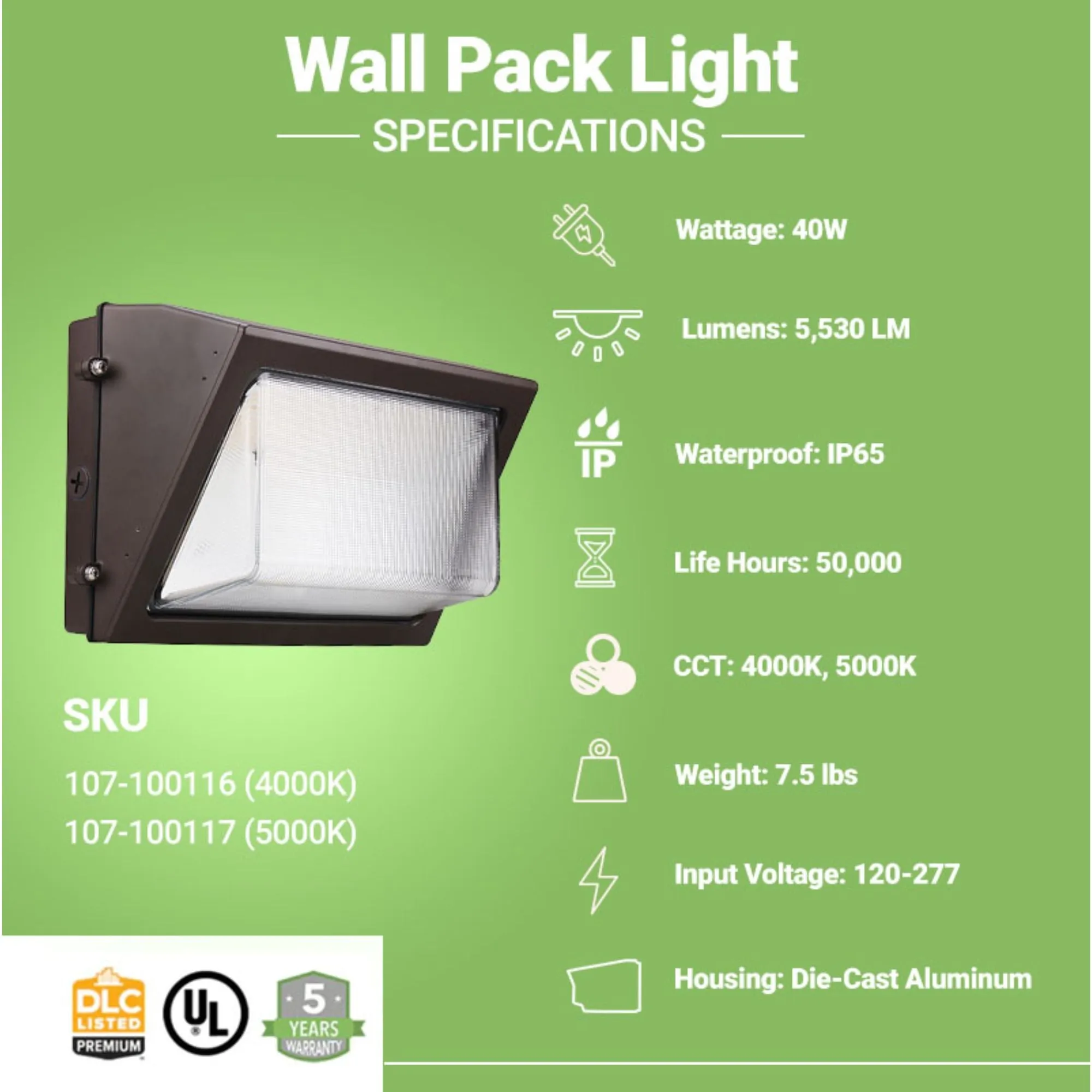

SPECIFICATIONS
SKU: 107-100116 (4000K), 107-100117 (5000K)
Lumens: 5,530 LM
Qualification: UL, DLC 5.1

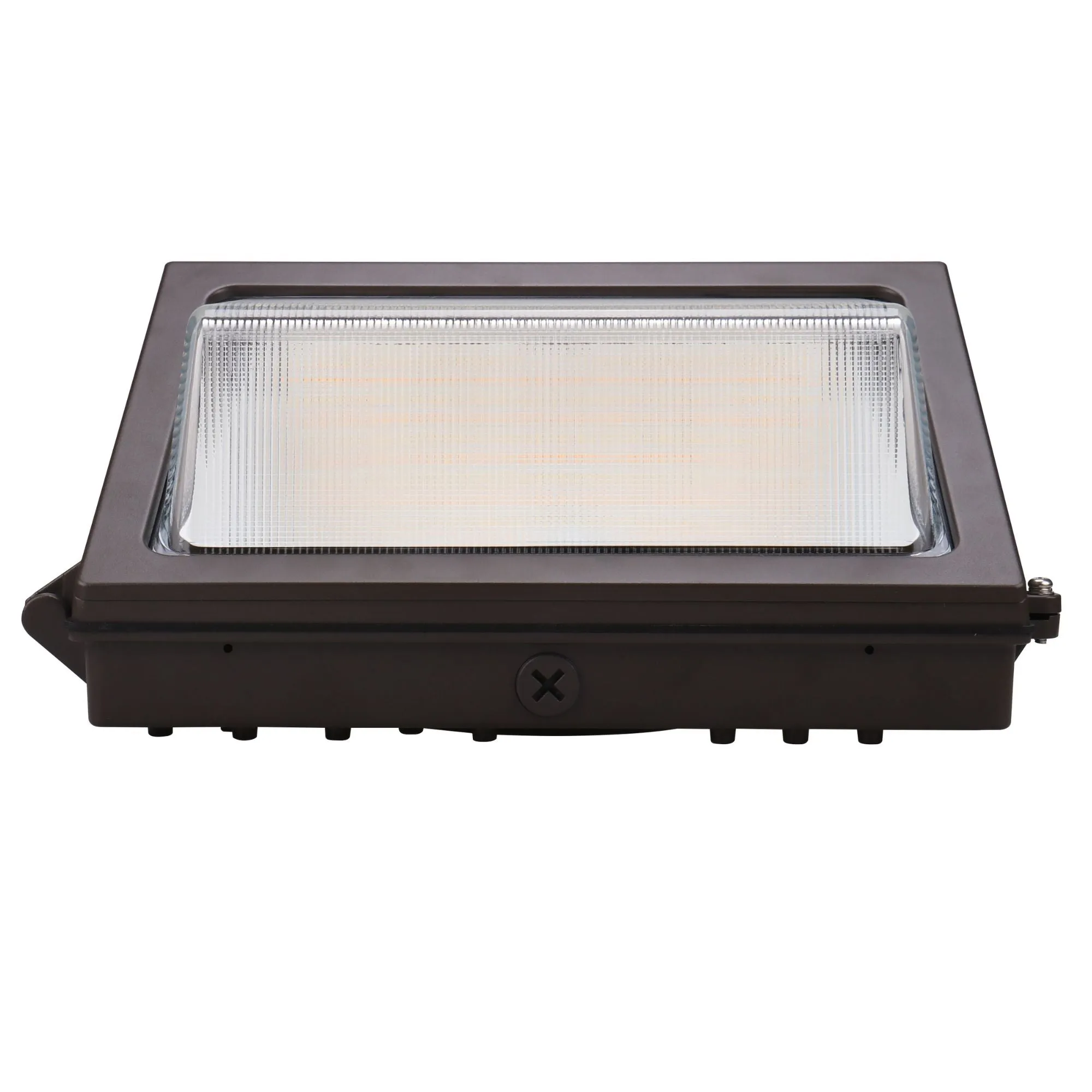

Diffuser Type: Stripe Glass

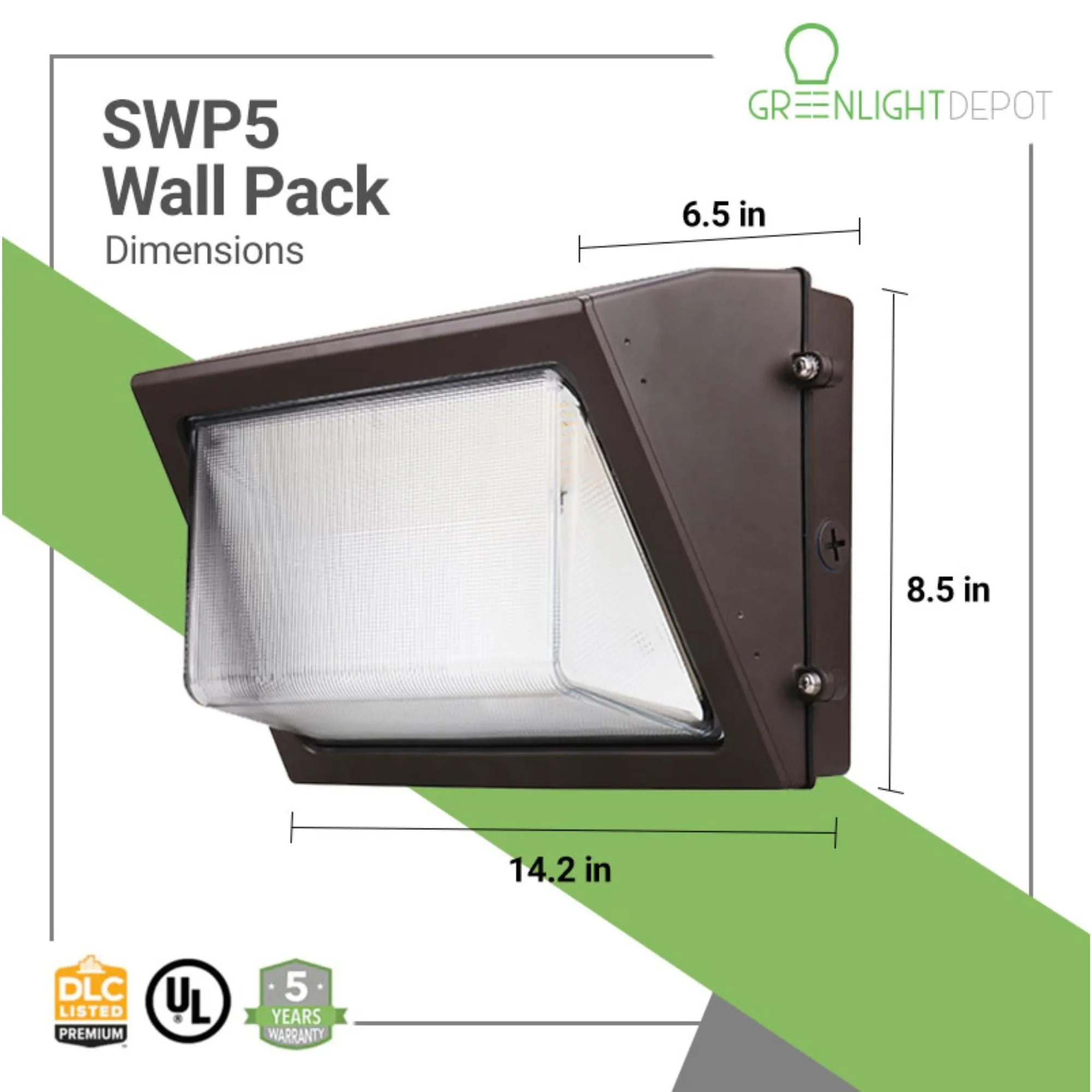

Dimension: 14.2" x 8.6" x 6.5"
Weight: 7.5 lbs
Material: Die-cast aluminum
Watts: 40
Colors: 4000K, 5000K
Input Voltage: 120-277V
Replaces: 250W HID
Dimming: 0-10V

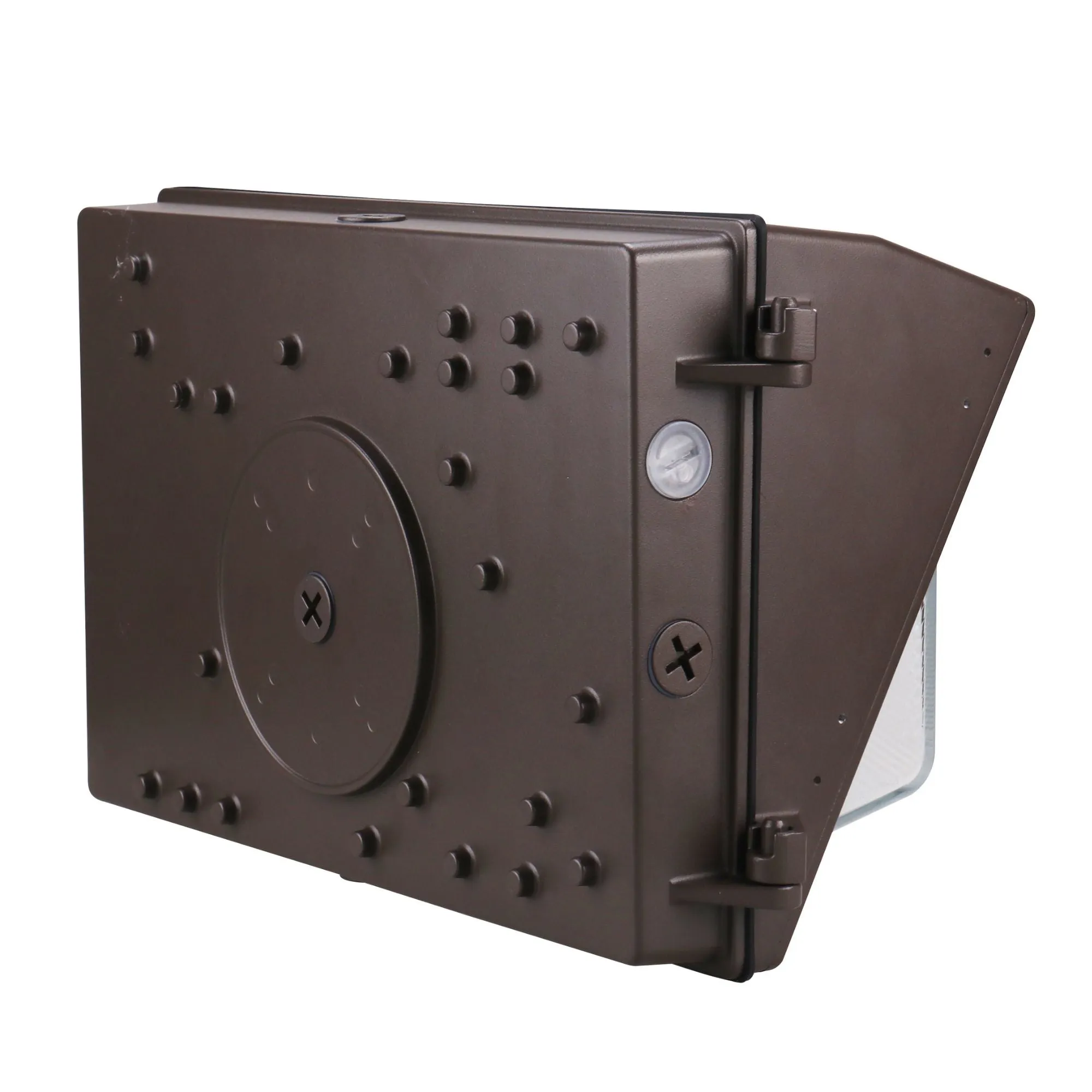

Sensor Type: Photocell Sensor

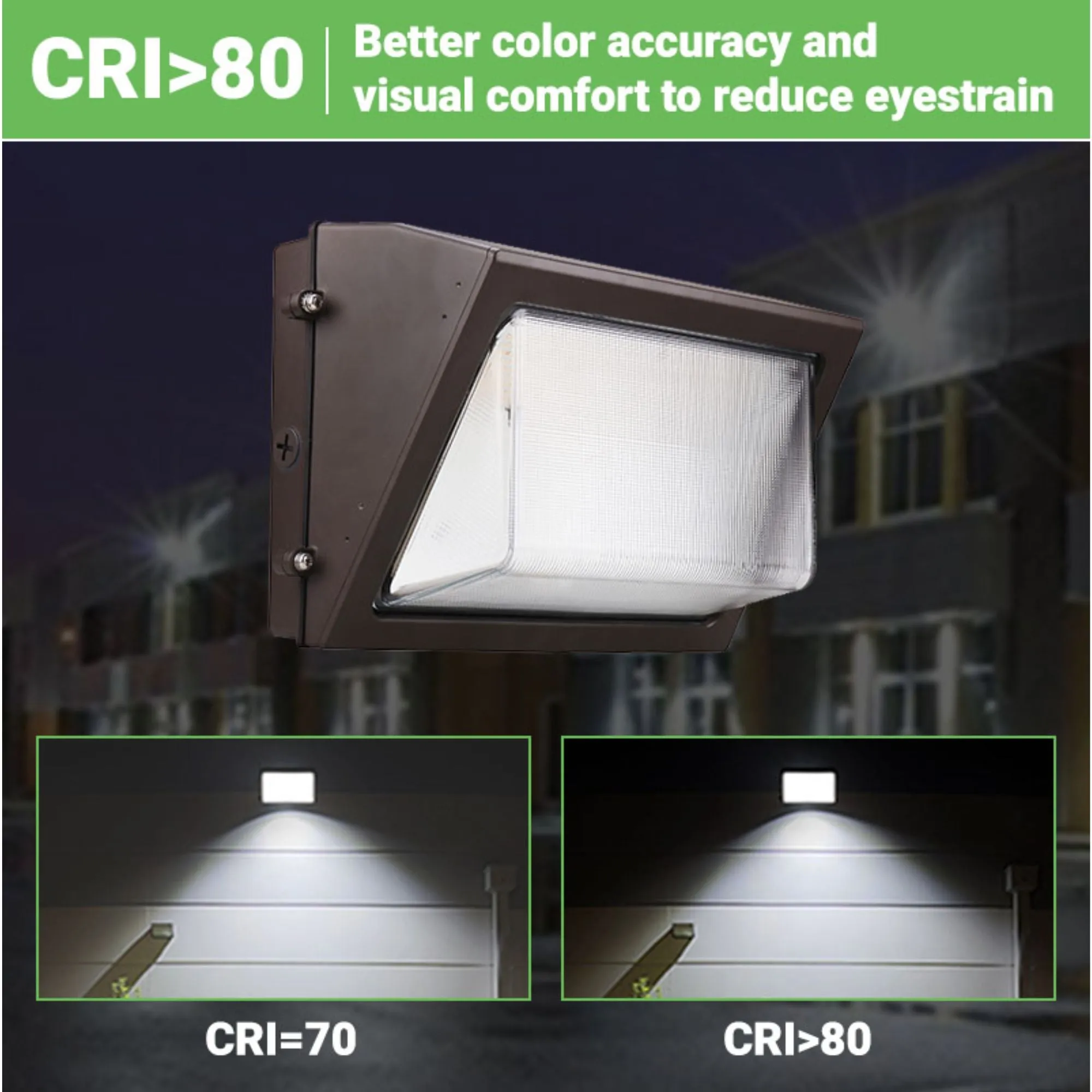

CRI: >80
LED Count: 150 PCS
Fixture Color: Bronze
Weatherproof: IP65 Rating
Warranty: 5 Years
This product is listed under DesignLights Consortium® (DLC) which does not only provide eligibility for rebates from most utility providers, but also promotes high-quality and energy-efficient lighting products through vigorous testing protocols.
Product Spec Sheet
Clickto view the Product Spec Sheet.
Click for IES file.
Click for Installation Instructions.
Notice For User:
- Please turn off power before installation, troubleshooting, or changing parts.
- The input voltage and should be matched with the lamps, please make sure the wiring section is insulated.
- Professionals are recommended for the installation and disassembly of lamps.
