Description

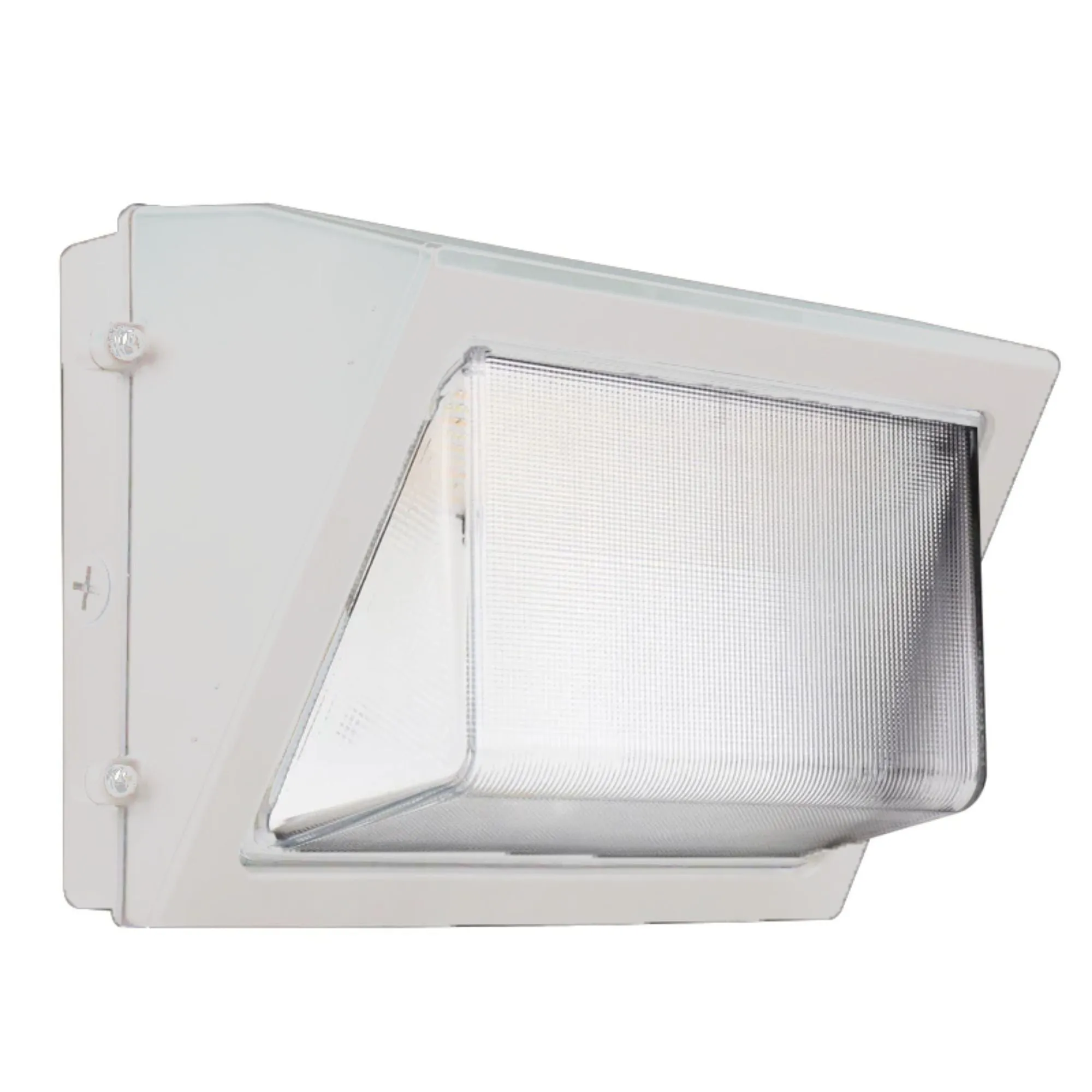

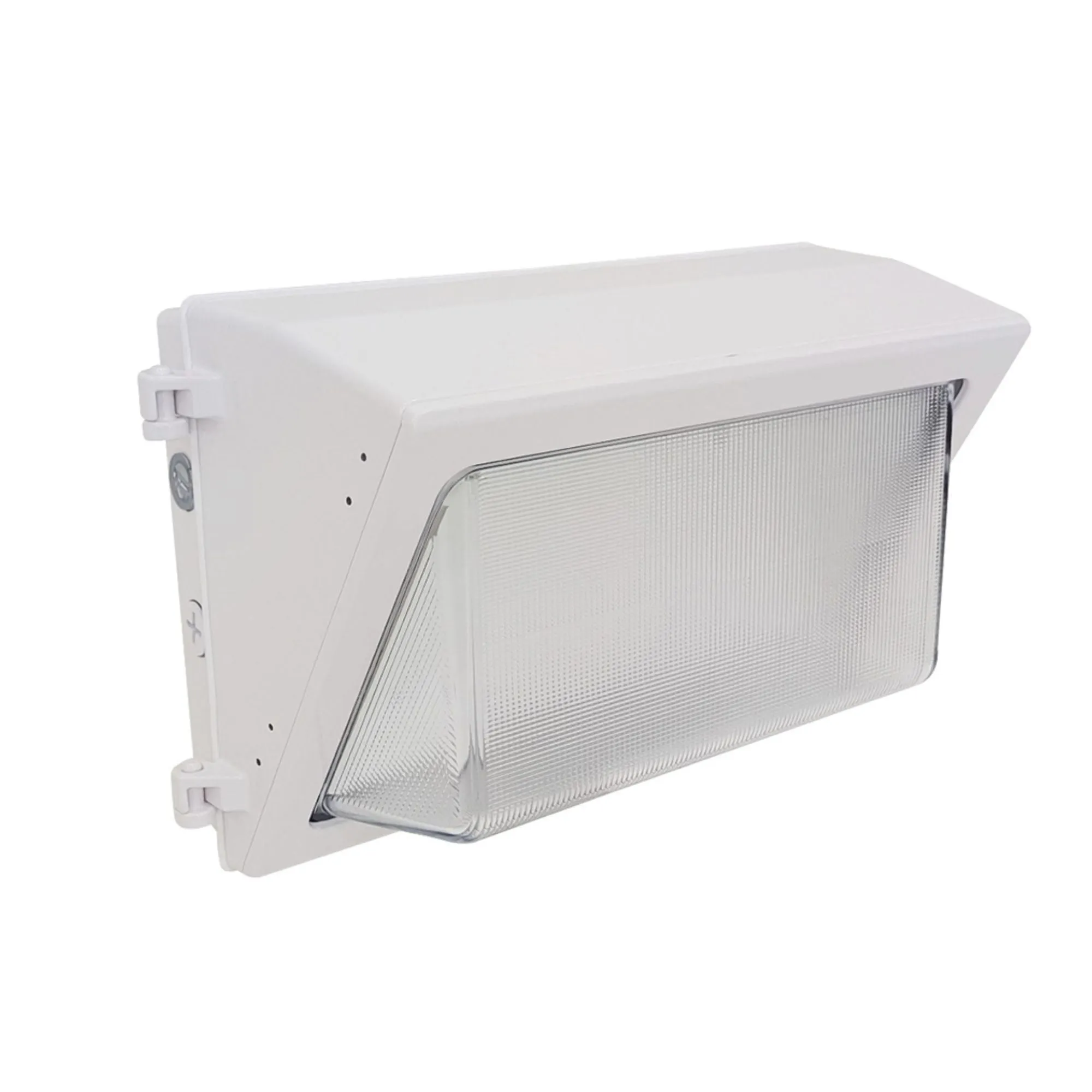

This LED Wall Pack Light 120W delivers 142LM/W bright and energy-efficient lighting that replaces 600W equivalent HPS/HID fixtures. Our wall pack lights are UL and DLC 5.1 qualified, ensuring top-notch quality.

The fixture comes with a built-in photocell sensor that automatically adjusts its illumination based on ambient light levels saving up to 80% energy cost. The Stripe Glass diffuser enhances light distribution, minimizing glare and providing a pleasant lighting experience. The heavy-duty die-cast aluminum body ensures IP 65 rating that can work in all outdoor environments. Our SWP5 Wall Pack Lighting lasts over 50,000 hours and has a 5-year warranty.

*This light fixture only comes with the photocell accessory. Any other accessories displayed in the video (motion sensors, emergency ballasts, shields, or cages) could be special ordered by calling our office*

Specifications

SKU: 107-100133 (4000K),107-100127 (5000K)

Lumens: 17,200 LM

Qualification: UL, DLC 5.1

Diffuser Type: Stripe Glass

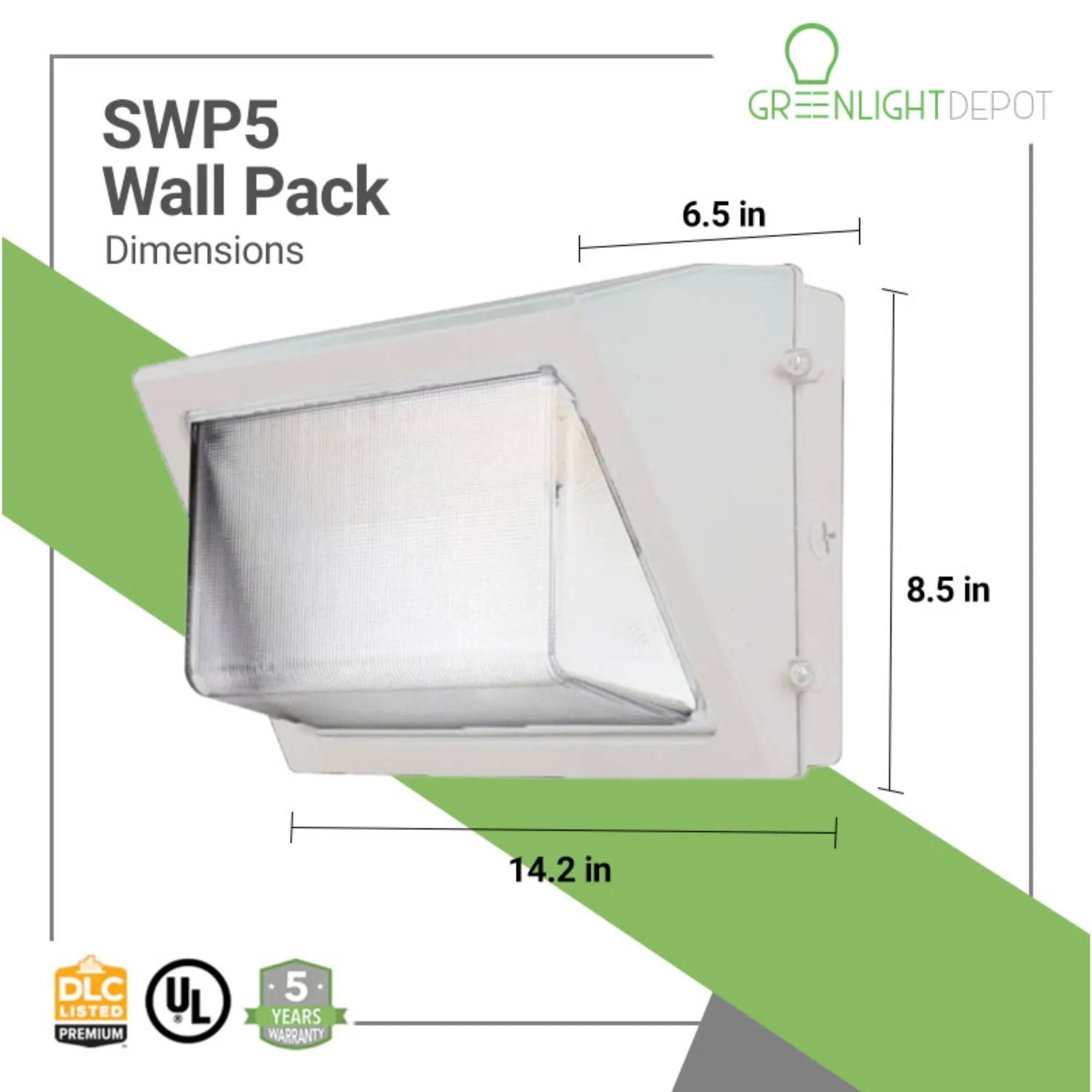

Dimensions: 14.2" x 8.6" x 6.5"

Material: Die-cast aluminum

Watts: 120W

Colors: 4000K, 5000K

Input Voltage: 120-277V

Weight: 7.5 lbs

Replaces: 600W HID

Dimming: 0-10V

Sensor Type: Photocell Sensor

CRI: >80

LED Count: 286 PCS

Fixture Color: White

Weatherproof: IP65 Rating

Warranty: 5 Years

This product is listed under DesignLights Consortium® (DLC) which does not only provide eligibility for rebates from most utility providers, but also promotes high-quality and energy-efficient lighting products through vigorous testing protocols.

Product Spec Sheet

Click to view the Product Spec Sheet.

Click for IES file.

Click for Installation Instructions.

Notice For User:

• Please turn off power before installation, troubleshooting, or changing parts.
• The input voltage and should be matched with the lamps, please make sure the wiring section is insulated.
• Professionals are recommended for the installation and disassembly of lamps.
